ABDOMINAL MUSCLE

A IVE Abdominal Muscle device develops abdominals, obliques, and back muscles.

IVE are recreational devices for outdoor training for every age group and every user level – from teenagers, through adults and seniors, to professionals.

IVE devices have an innovative solution of load regulation, thanks to which adjusting the weight to your training capabilities is extremely simple, fast, and safe.

A IVE Abdominal Muscle device develops abdominals, obliques, and back muscles. IVE are recreational devices for outdoor training for every age group and every user level – from teenagers, through adults and seniors, to professionals. IVE devices have an innovative solution of load regulation, thanks to which adjusting the weight to your training capabilities is extremely simple, fast, and safe.

IVE ABDOMINAL MUSCLE TRAINING

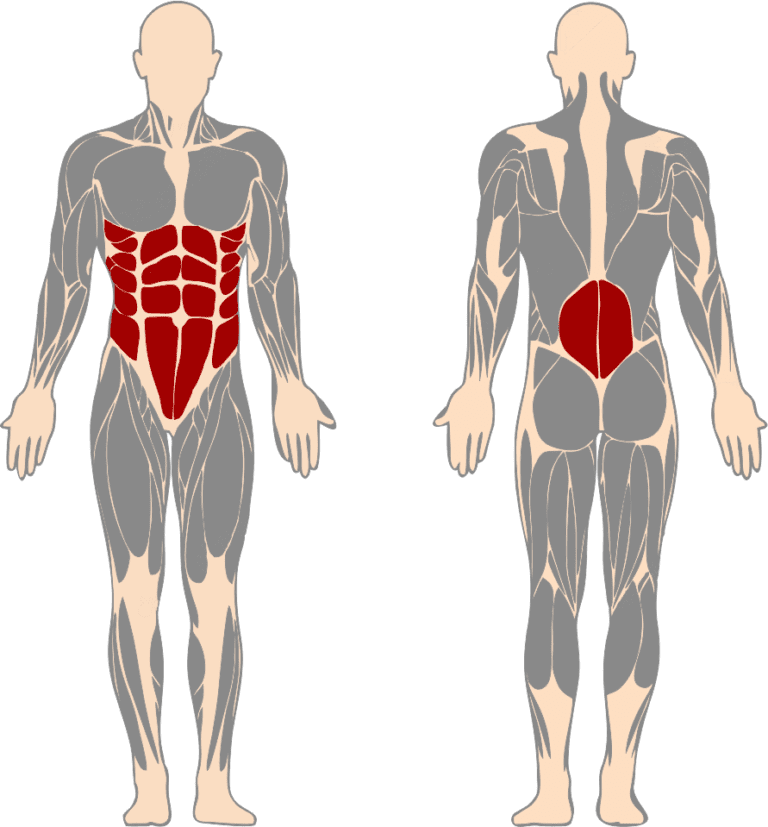

MUSCLES TRAINED

ABDOMINALS / OBLIQUES / BACK

COLORS

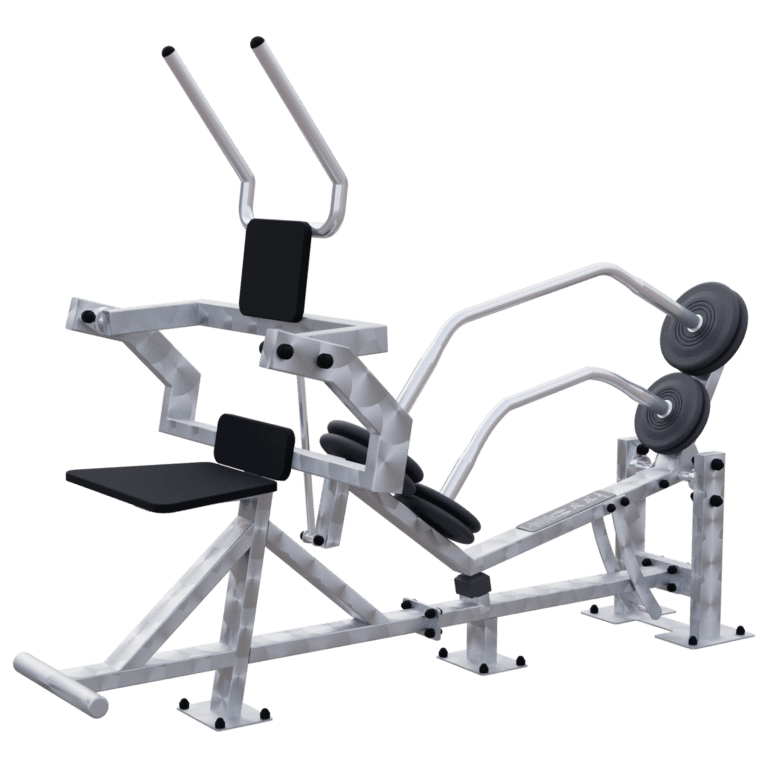

BRUSHED FINISH
STAINLESS STEEL

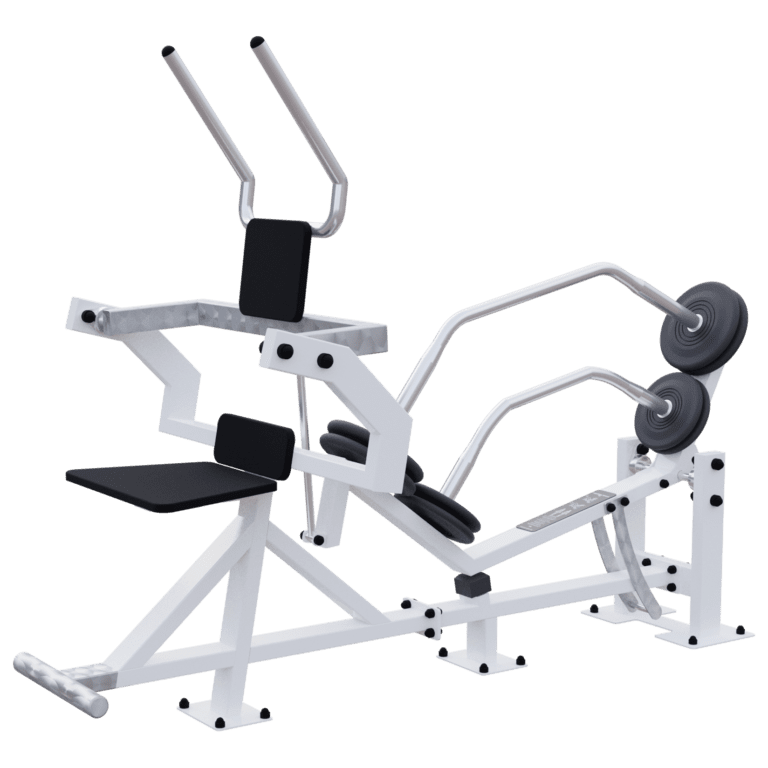

HAMMERED
WHITE

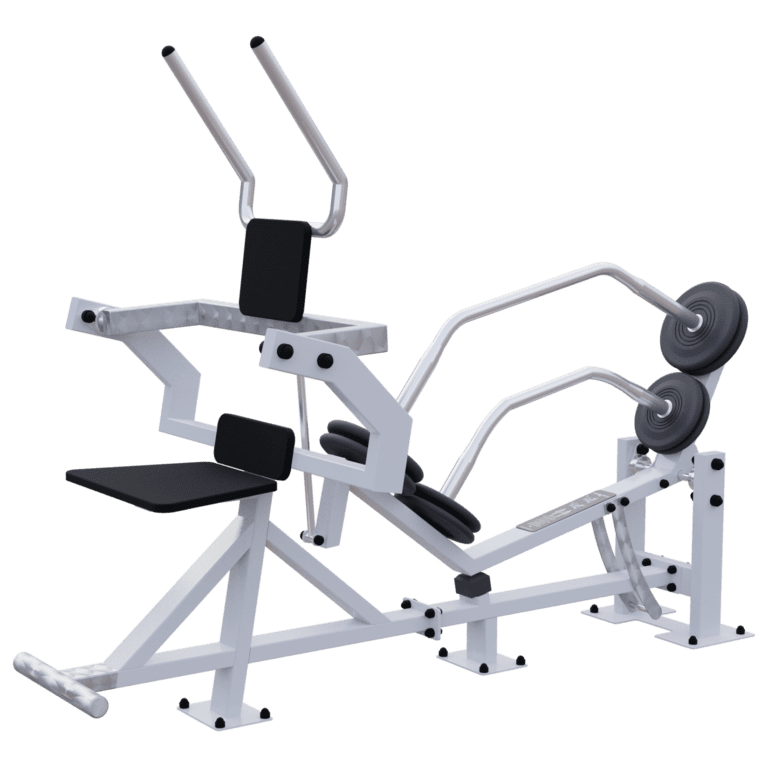

HAMMERED
SILVER

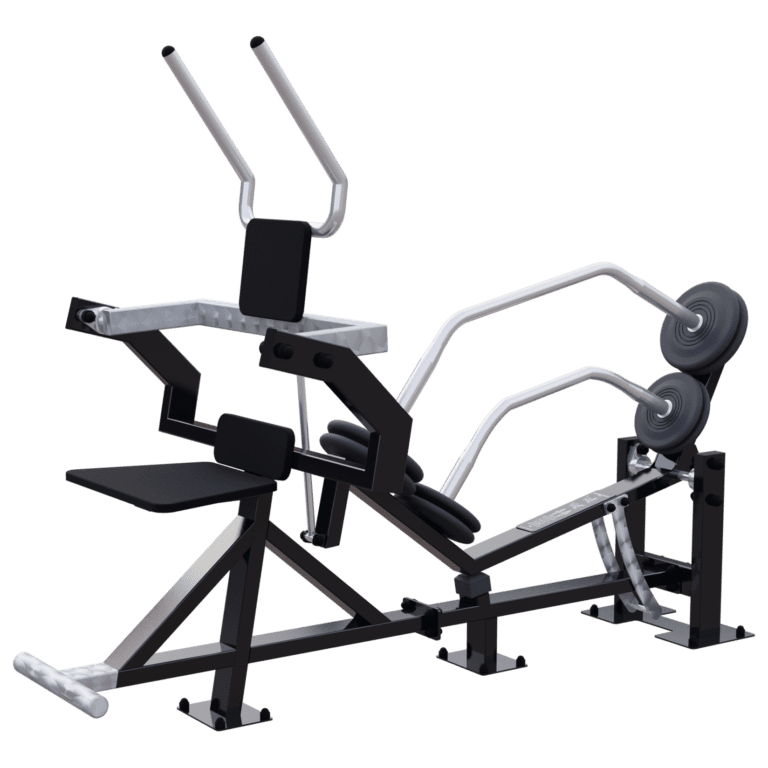

HAMMERED
BLACK

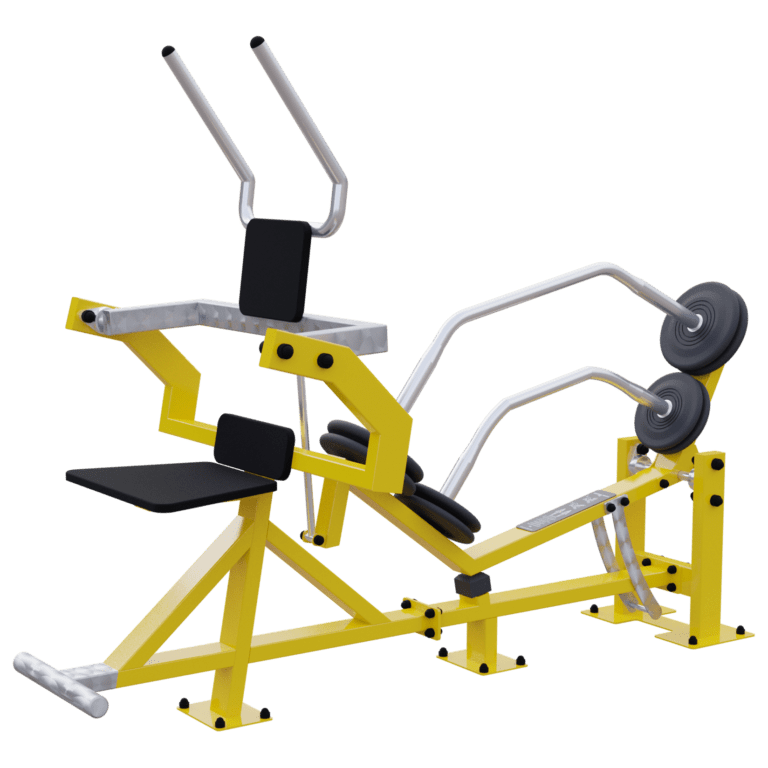

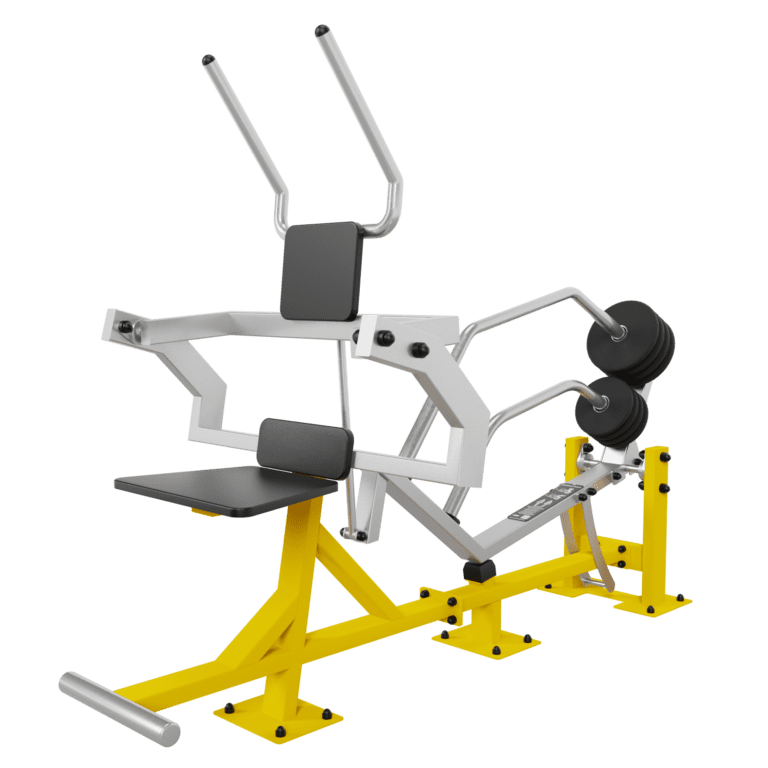

RAL 1023
TRAFFIC YELLOW

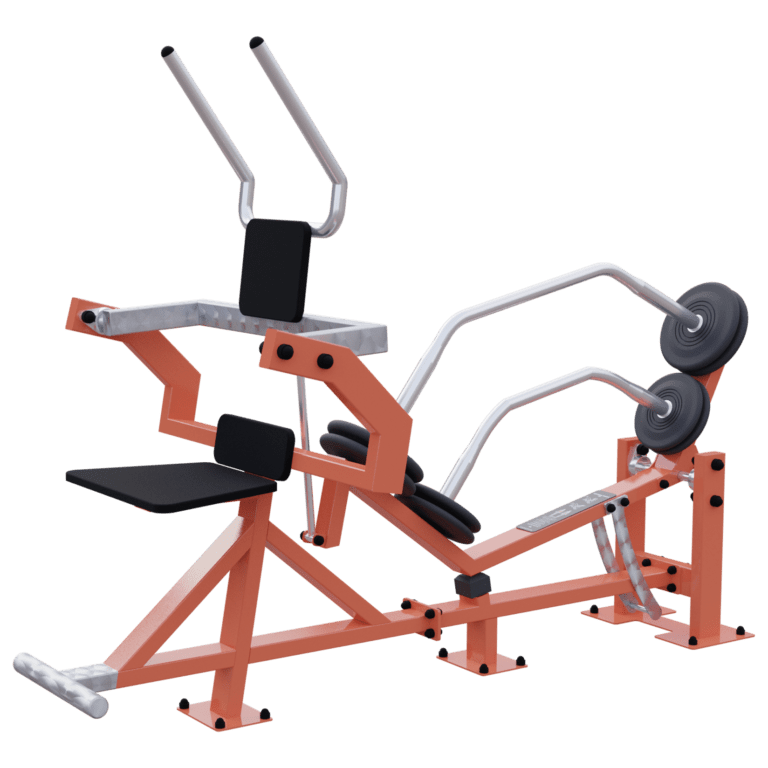

RAL 2004
PURE ORANGE

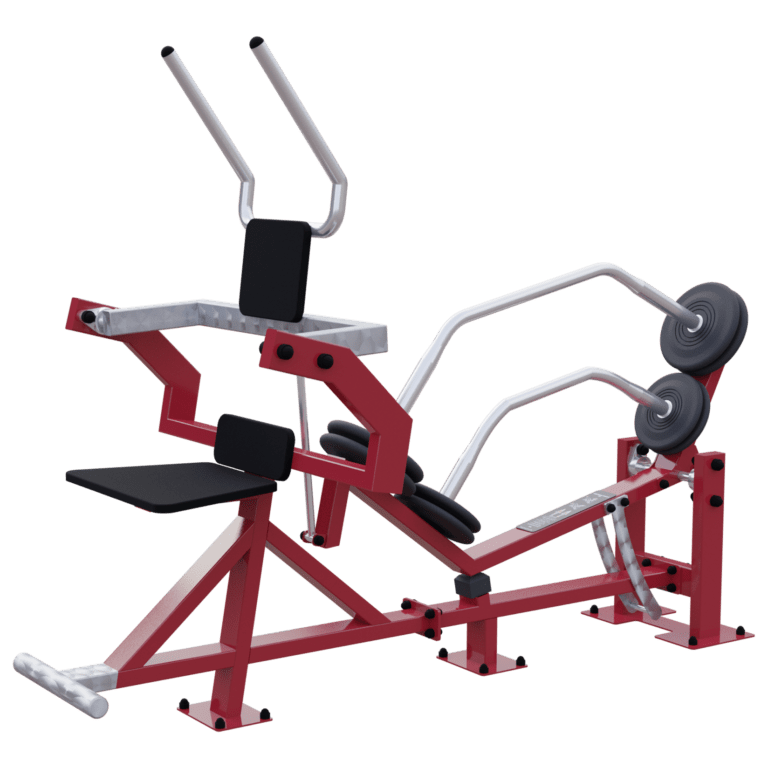

RAL 3003
RUBY RED

RAL 3020
TRAFFIC RED

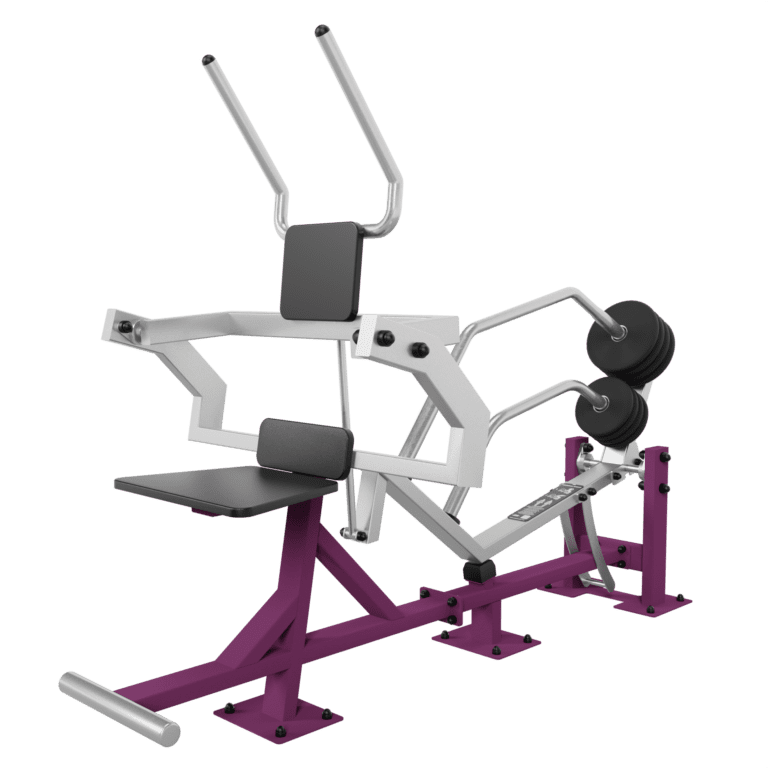

RAL 4007
PURPLE VIOLET

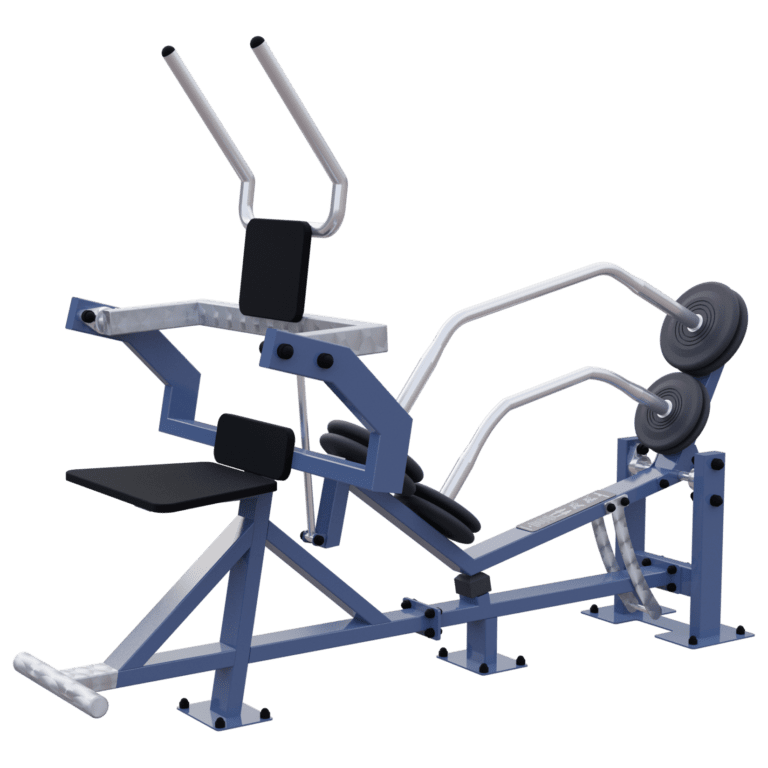

RAL 5003
DARK NAVY BLUE

RAL 5012
LIGHT BLUE

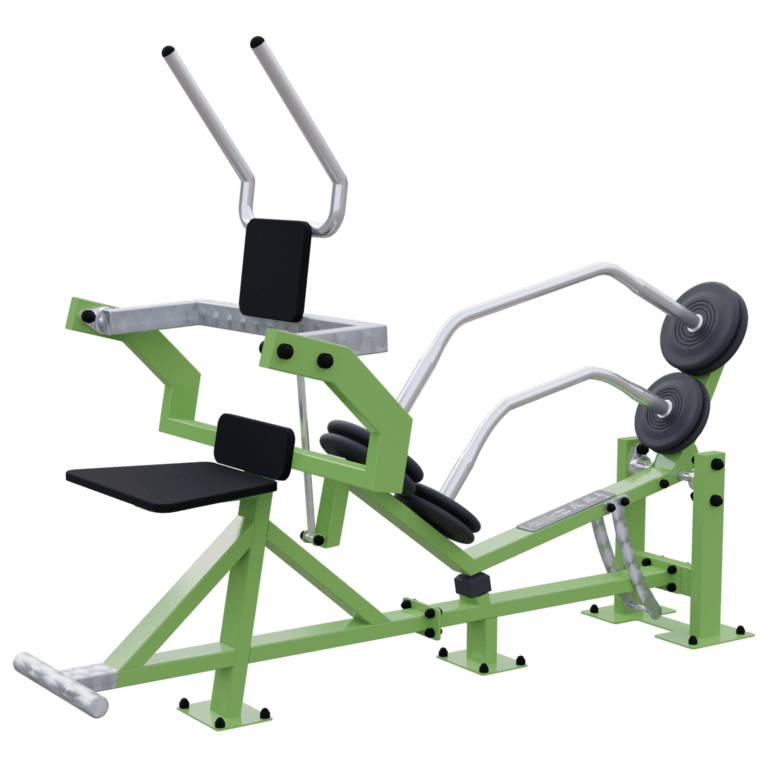

RAL 6018
YELLOW GREEN

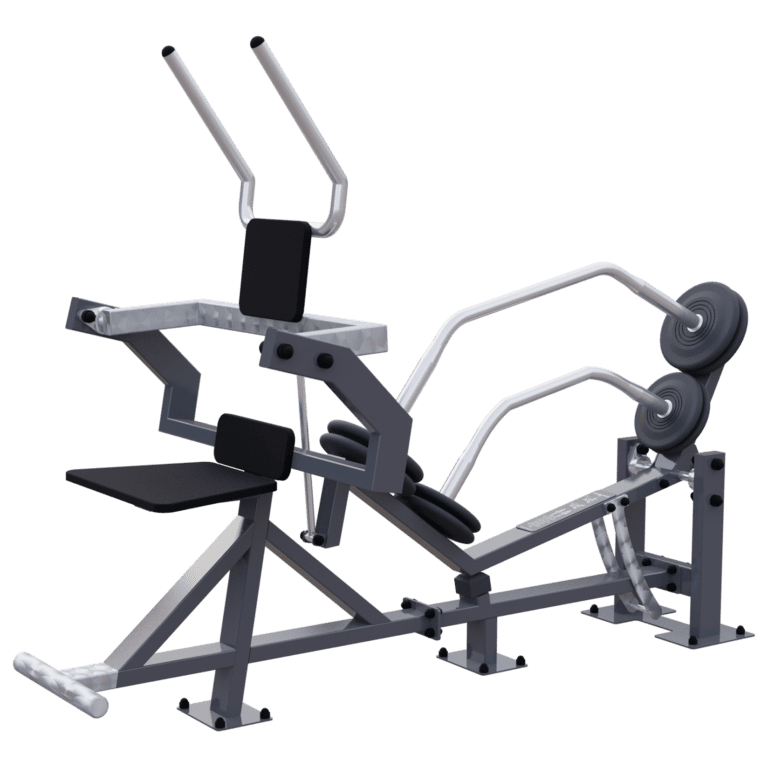

RAL 9005
JET BLACK

IVE devices in the basic version are made of polished stainless steel, thanks to which we obtain a beautiful and extremely durable structure. The lack of additional varnishing also allows the product to maintain a perfect appearance for as long as possible, because in this way we eliminate all possible mechanical damage to the varnish coatings that can always occur in public utility products.

However, at the customer’s request, we varnish our products in all available RAL CLASSIC colors and colors with the “HAMMER” structure.

In example below there is a QR Code link to the website www.ral-farben.de/en/all-ral-colours, which shows all available RAL colors.

OR

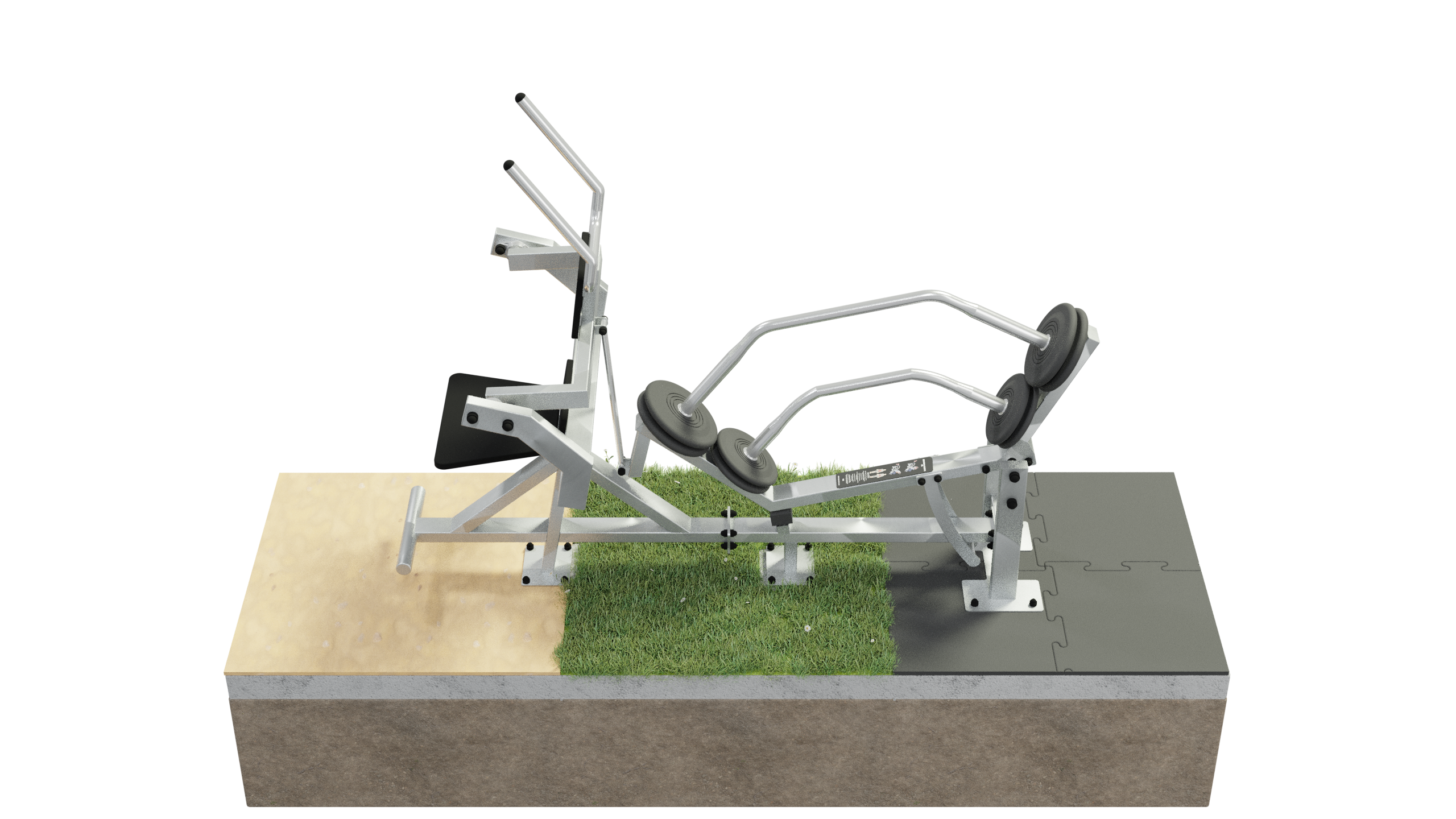

INSTALLATION

SAND MAX 15 MM

GRASS
MAX 30 MM

RUBBER
MAX 45 MM

OR
CONCRETE / PAVING STONES > 6 CM

SPECIFICATION

Length

213 cm / 7’0’’

Width

96 cm / 3’2’’

Height

154 cm / 5’0’’

User height

+ 140 cm / 4’7’’

User age

+ 13 years

Safety area

20.31 m² / 218.61 ft²

Material

Stainless Steel

Standard

EN 16630:2015-06E

Certificate

CE / EU Declaration of Conformity

Weight adjustment

5 kg - 60 kg (x 5 kg) / 10 lbs - 130 lbs (x 10 lbs)

ECOLOGY / ENVIRONMENT / SOCIAL RESPONSIBILITY

ECOLOGY

Users do not need electricity, air conditioning or heating for outdoor training. All that is needed is the motivation to do it.

MATERIALS

Our devices are made of 100% stainless steel, which allows us to completely eliminate other less durable materials.

WARRANTY

We are so confident about the quality of our devices that we have established a 10-year commercial warranty to guarantee their integrity. We didn’t only double the industry standards – we extended it over 5 times!

PRODUCT LIFE CYCLE

21 YEARS is the guaranteed product life cycle, during which time we will guarantee the availability of all spare parts for our devices.

MAINTENANCE

IVE devices are virtually maintenance-free. A 5-minute session every 6 months will be sufficient to keep your IVE device safe and operational.

PUBLIC PROCUREMENT

A device for abdominal muscle training which develops abdominals, obliques, and back muscles.

  1. Made entirely of stainless steel.

  2. Load adjustment by moving the discs along pipes arranged perpendicularly and centrally in the axis of the exercising person.

  3. Adjustable load from 5 kg to 60 kg with a difference of 5 kg.

  4. Discs are protected against theft by the use of anti-theft screws, which require special tools to be removed.

  5. The movement of the device is based on the mechanism of four stainless steel bearings.

  6. Instruction plates made of 3 mm thick dibond, printed in UV technology, laminated with polyurethane.

  7. Backrest made of waterproof polyethylene with an additional UV-absorbing screen.

  8. Dimensions: length 213 cm / width 96 cm / height 154 cm.

  9. Designed for one person – up to a maximum of 180 kg.

  10. Accuracy class: A – high accuracy.

  11. Class of use: S – for professional or commercial use.

Model 3d

Download file

1. Instruction Plate
2. Device Feet
3. Safe Zone
4. Foundation
