SQUAT

A IVE Squat device develops quads, glutes, hips, calves, and back muscles.

IVE are recreational devices for outdoor training for every age group and every user level – from
teenagers, through adults and seniors, to professionals.

IVE devices have an innovative solution of load regulation, thanks to which adjusting the weight
to your training capabilities is extremely simple, fast, and safe.

IVE SQUAT EXERCISE

MUSCLES TRAINED

QUADS / GLUTES / HIPS / CALVES / BACK

COLORS

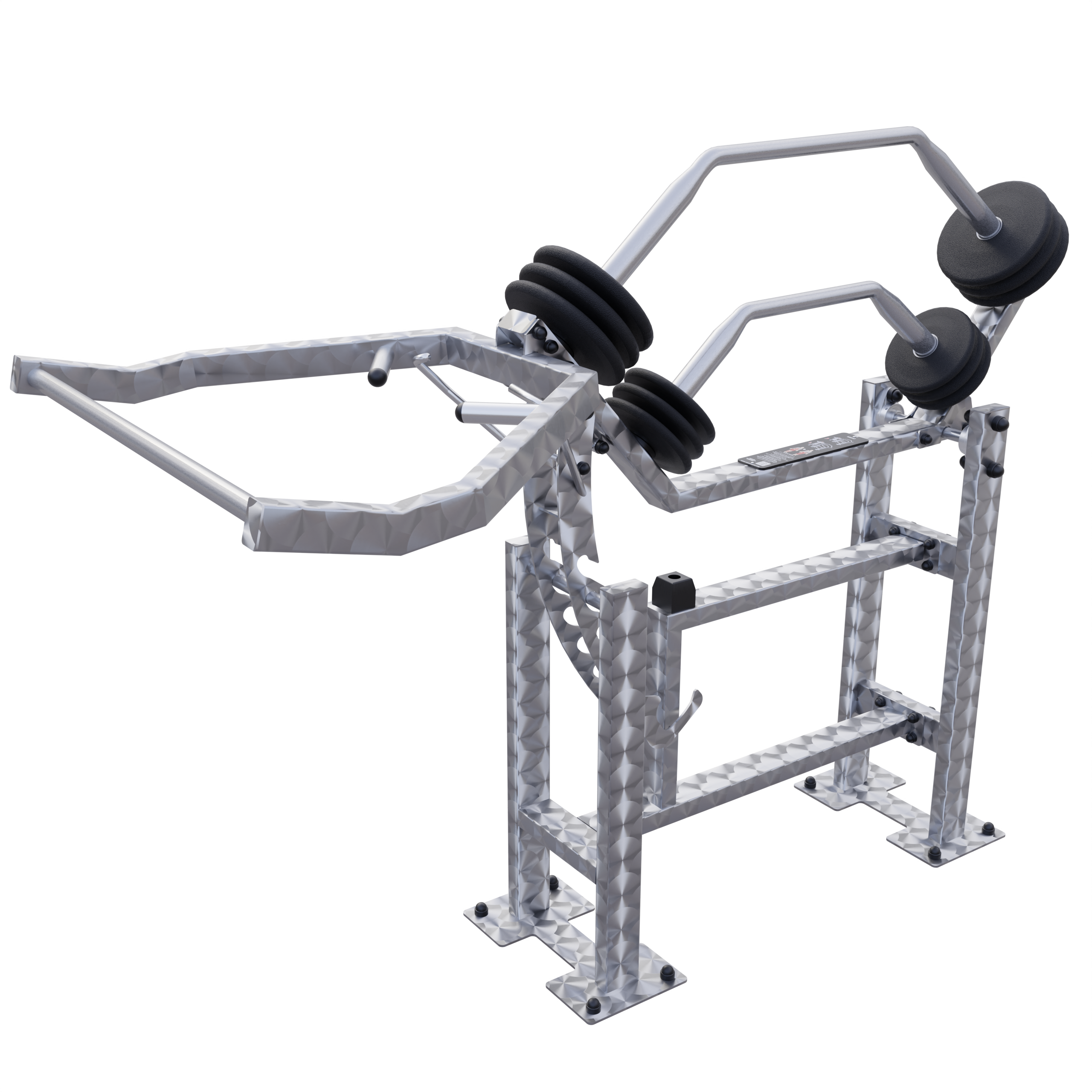

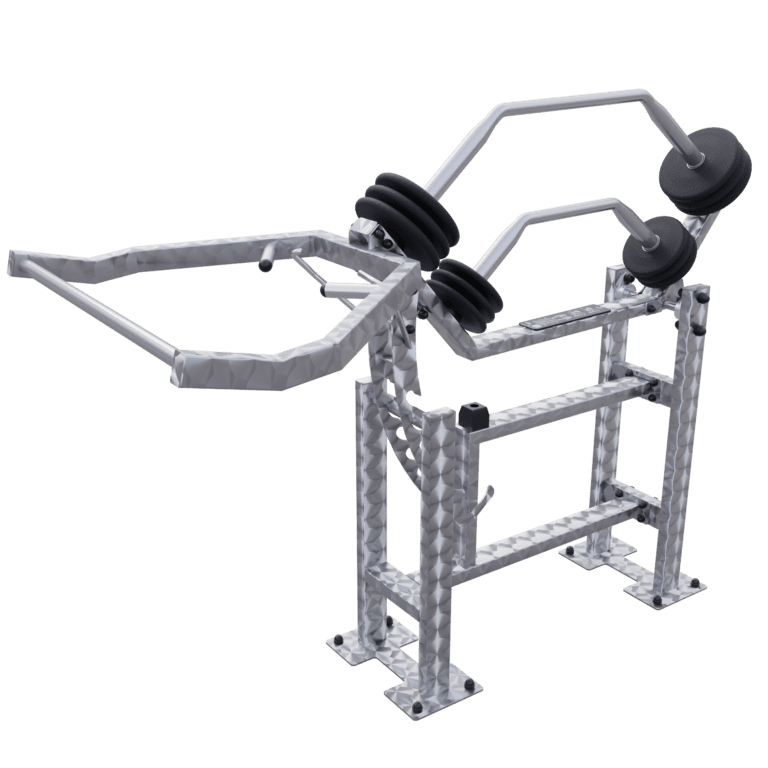

ENGINE TURNING
STAINLESS STEEL

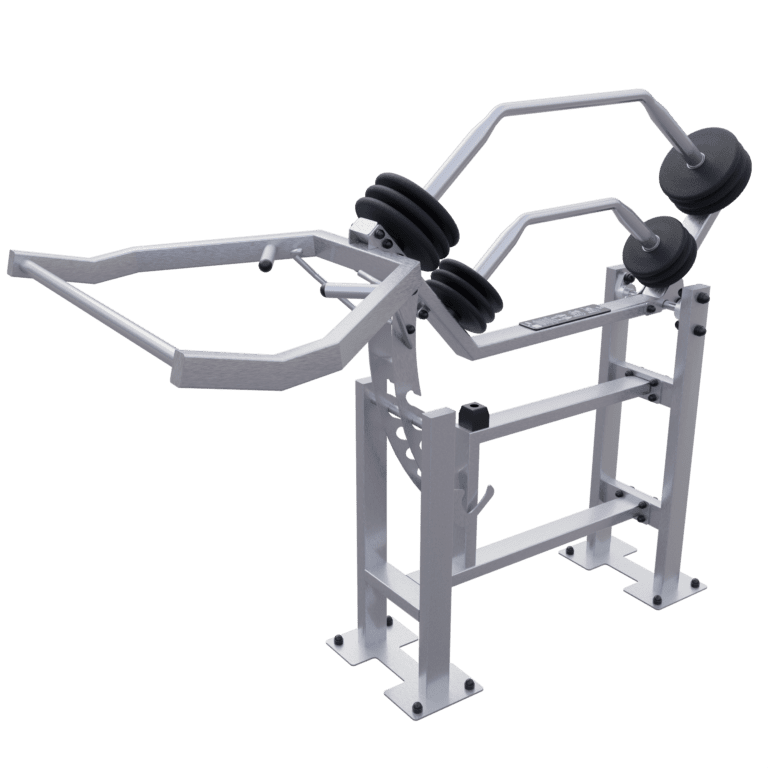

BRUSHED FINISH
STAINLESS STEEL

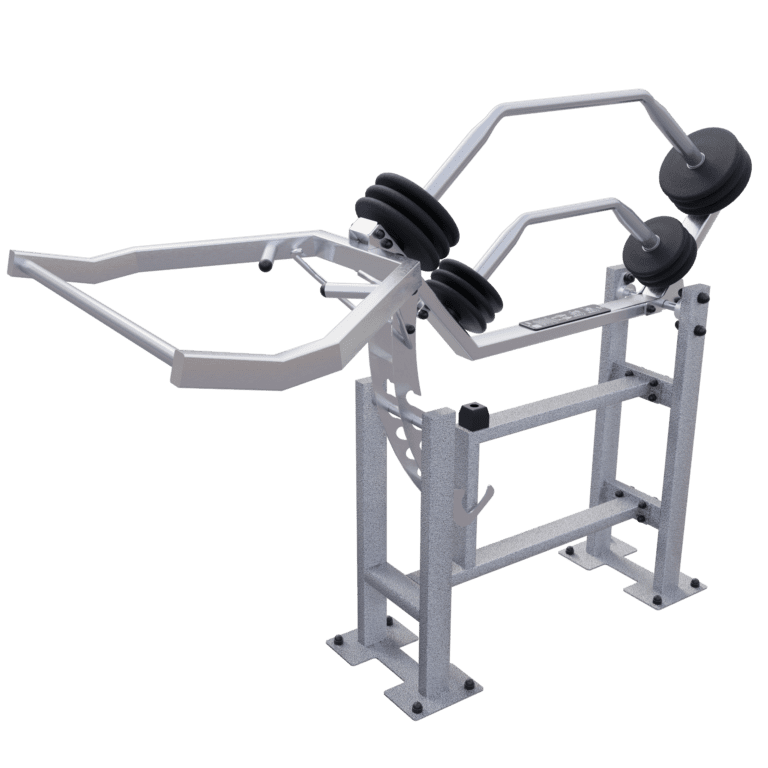

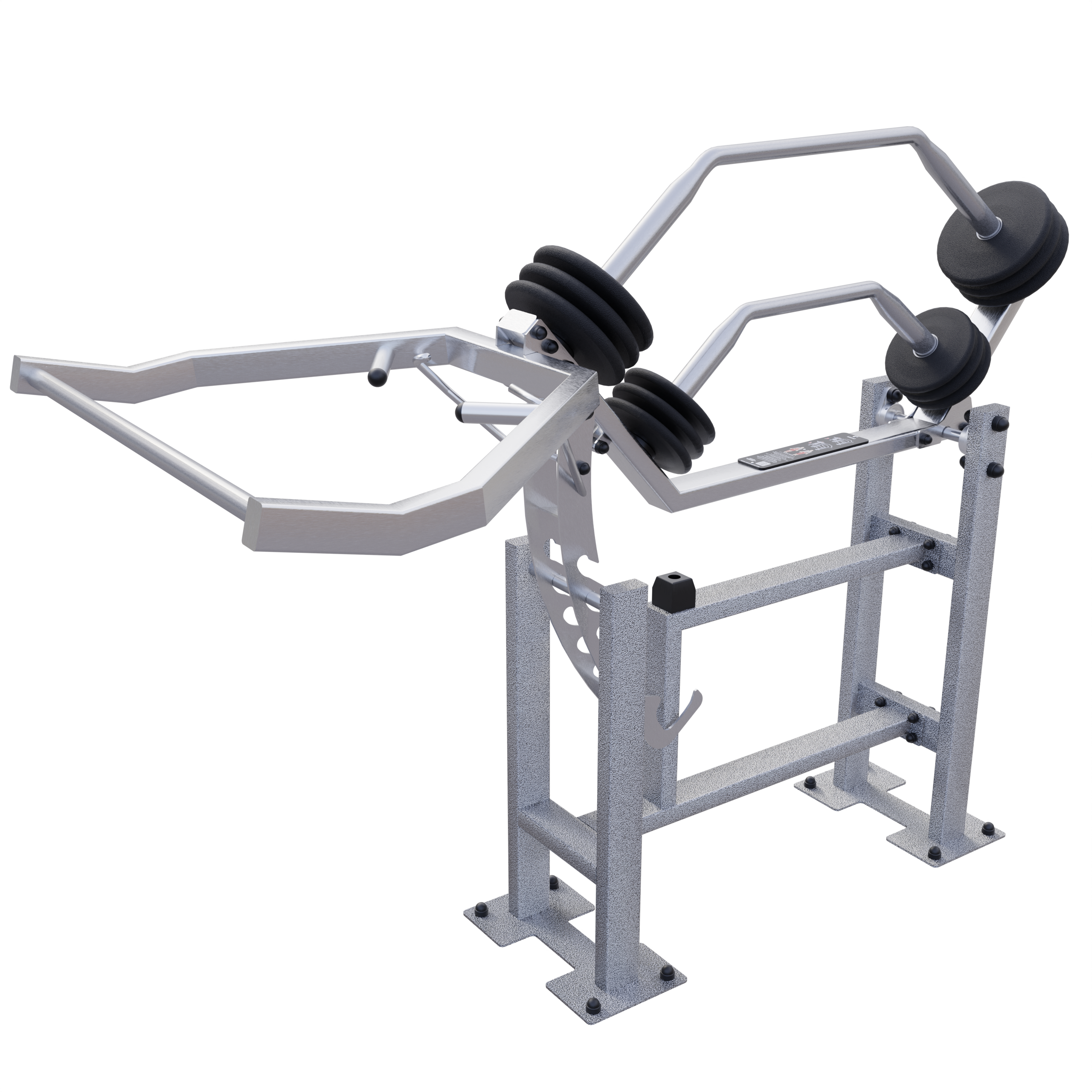

HAMMERED ANTIQUE
SILVER

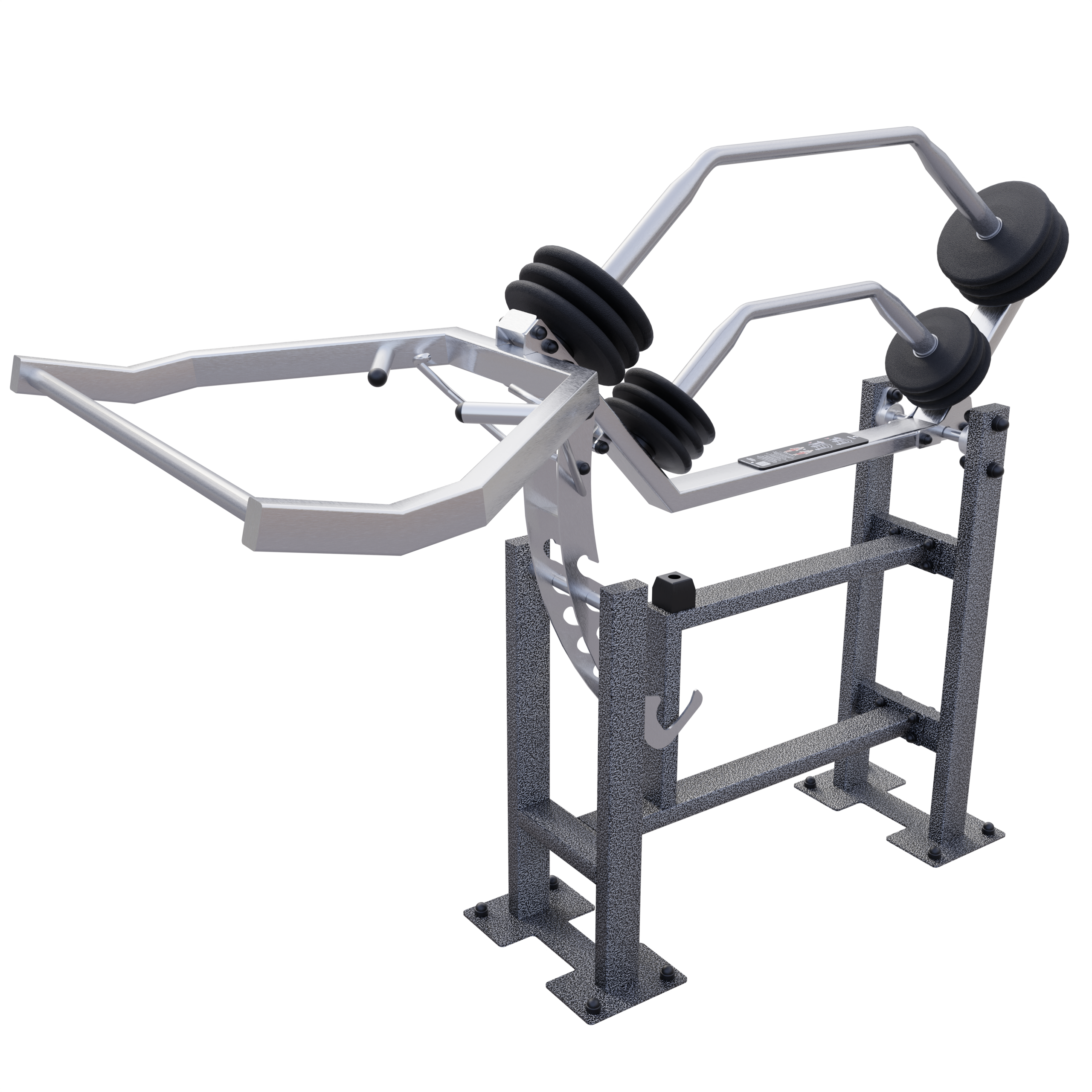

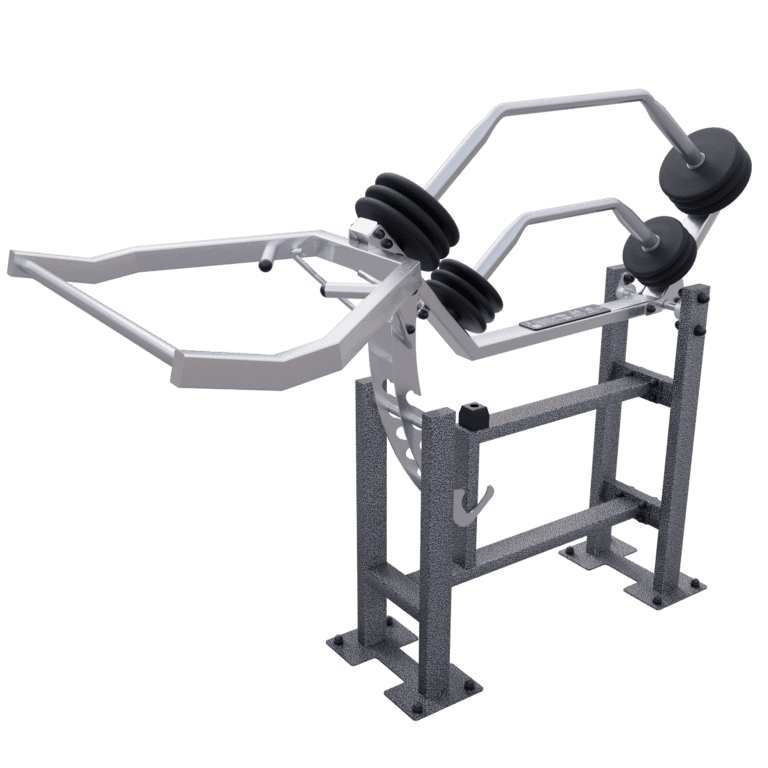

HAMMERED ANTIQUE
SILVER-BLACK

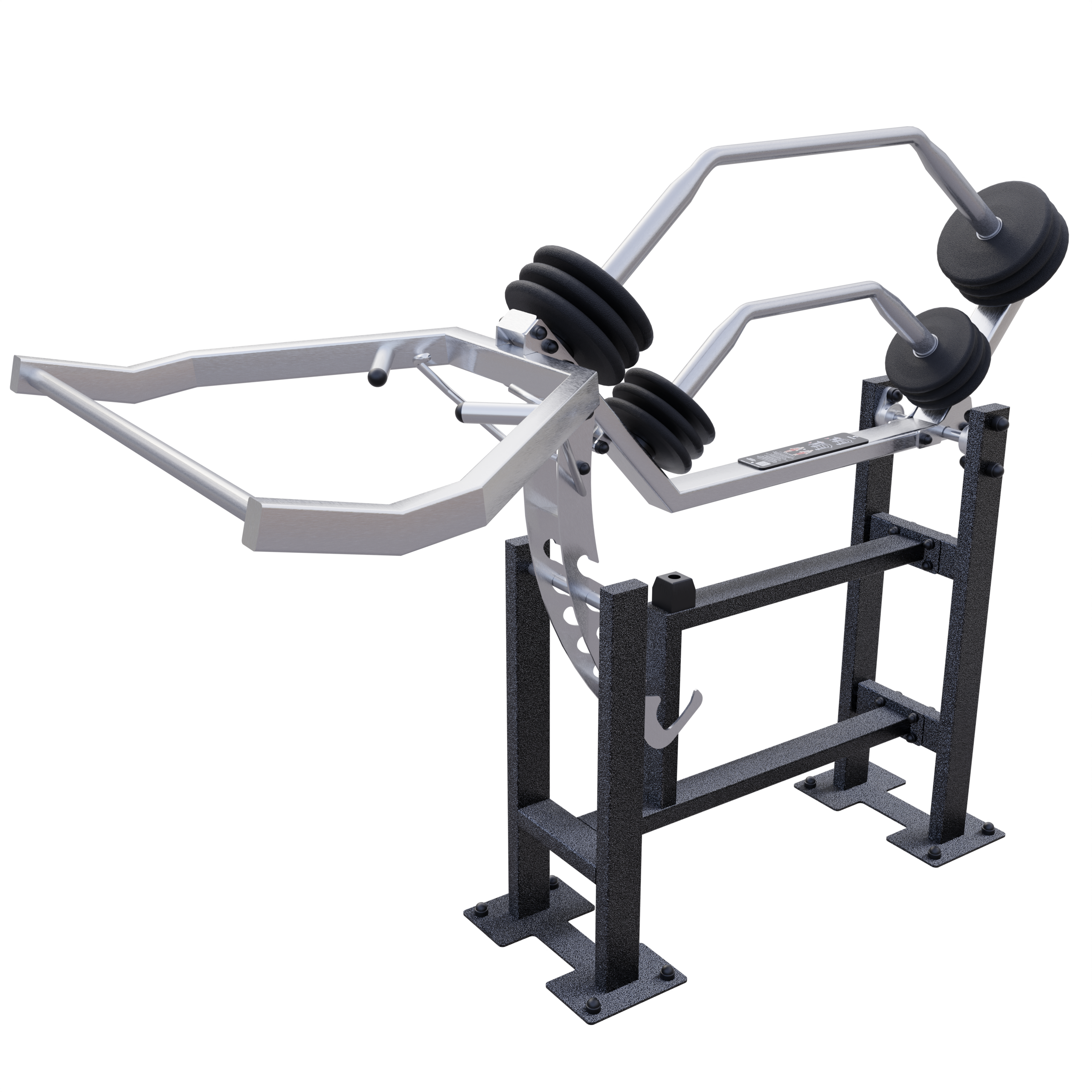

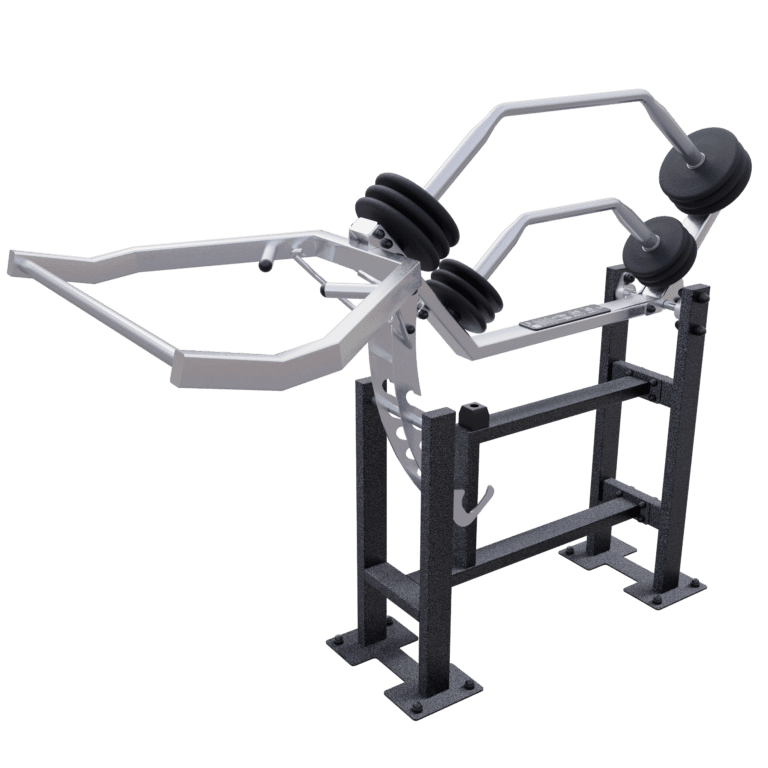

HAMMERED ANTIQUE
BLACK

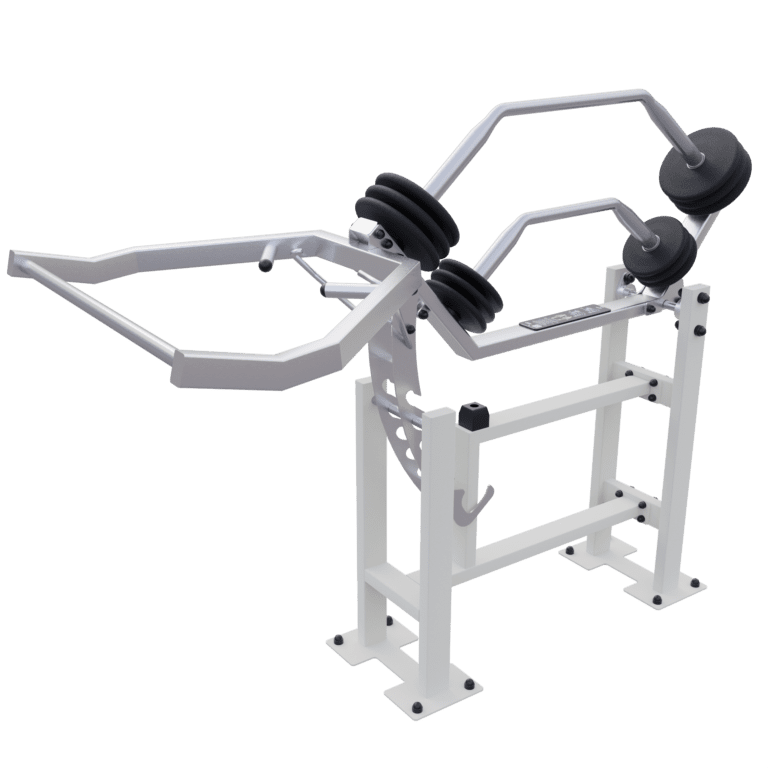

RAL 9010
PURE WHITE

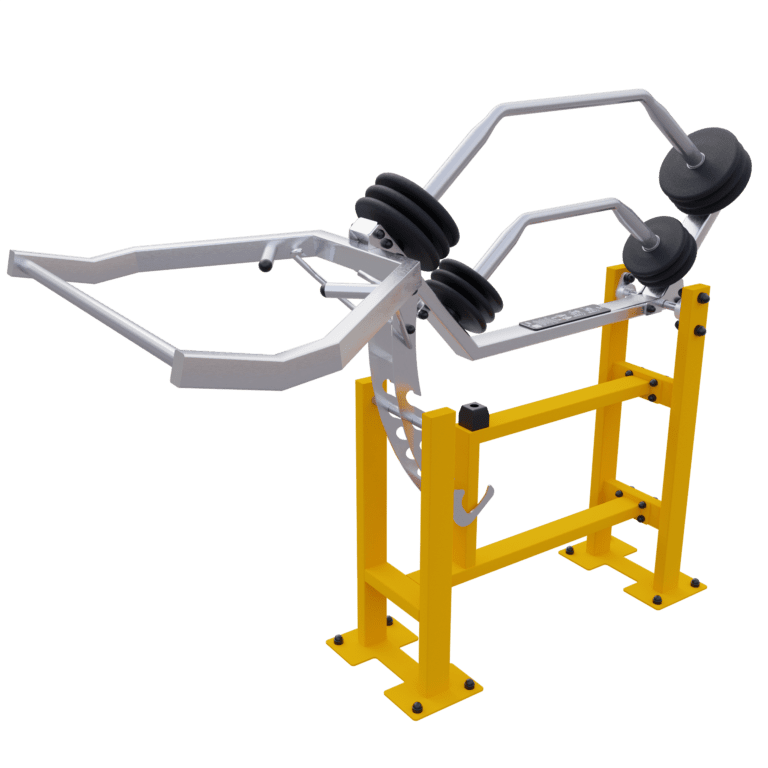

RAL 1023
TRAFFIC YELLOW

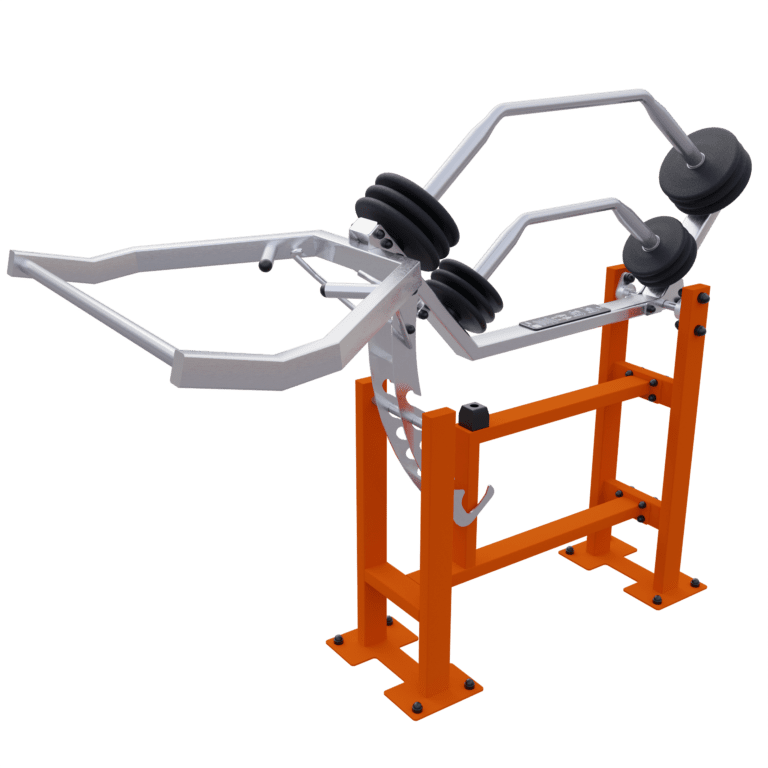

RAL 2004
PURE ORANGE

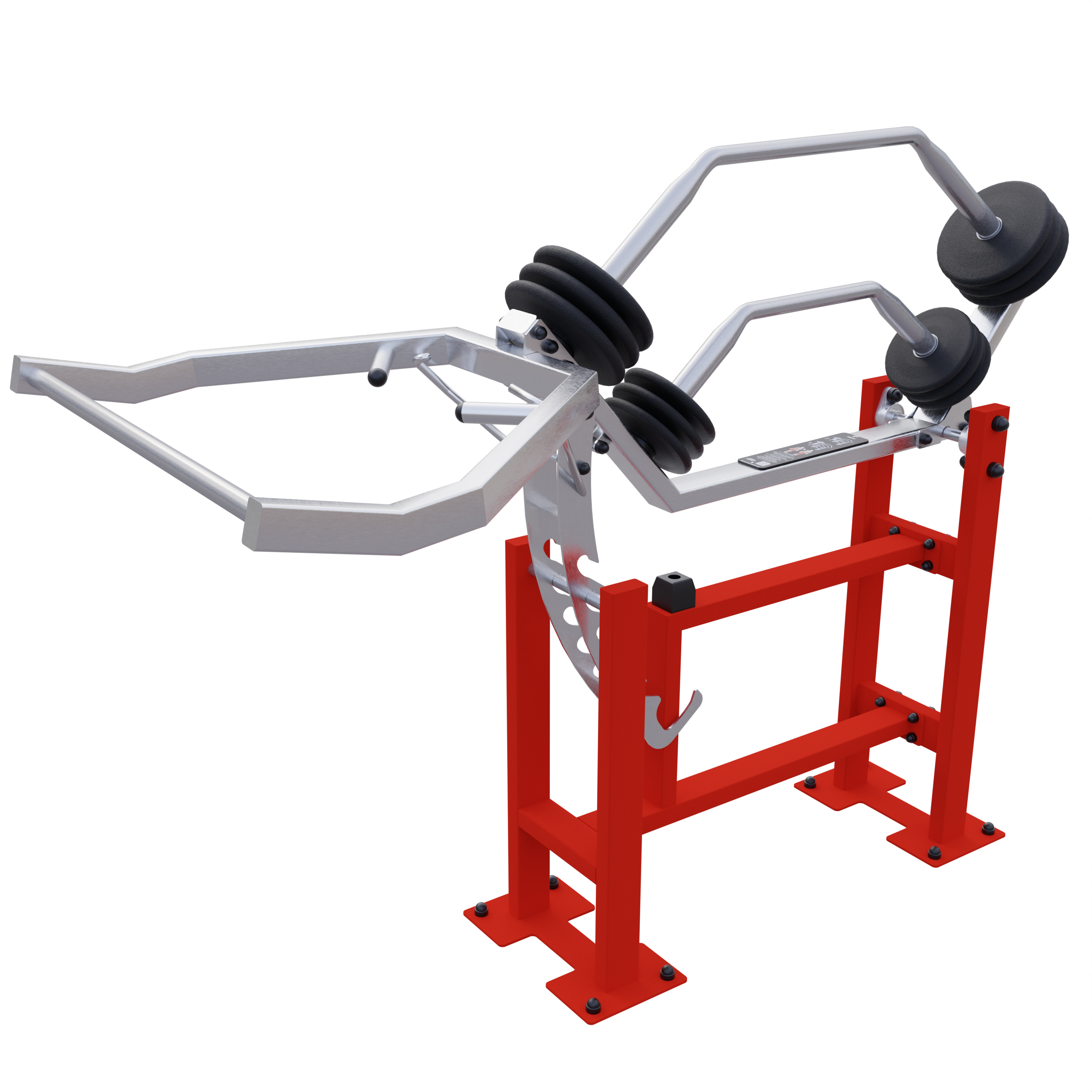

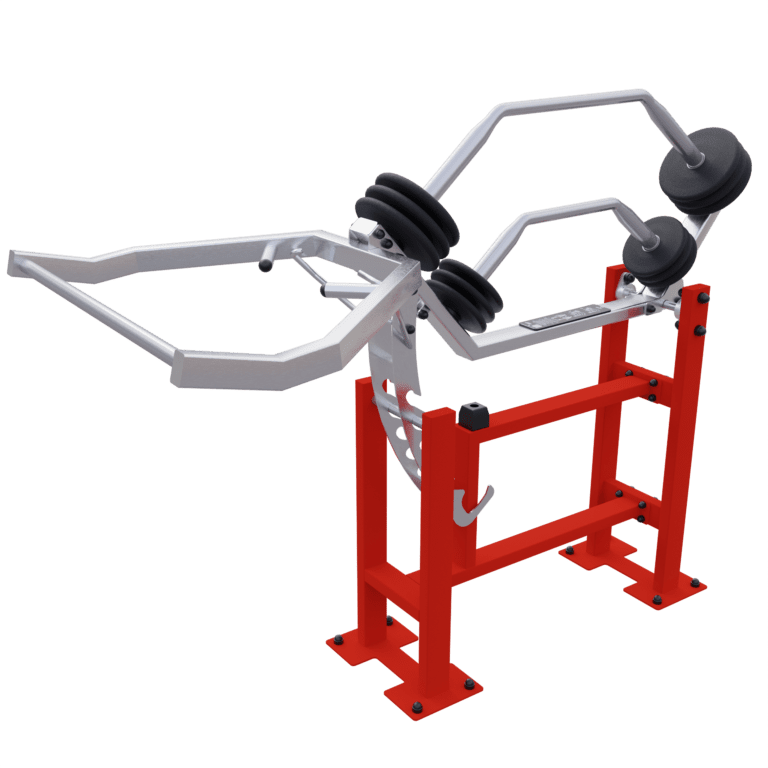

RAL 3020
TRAFFIC RED

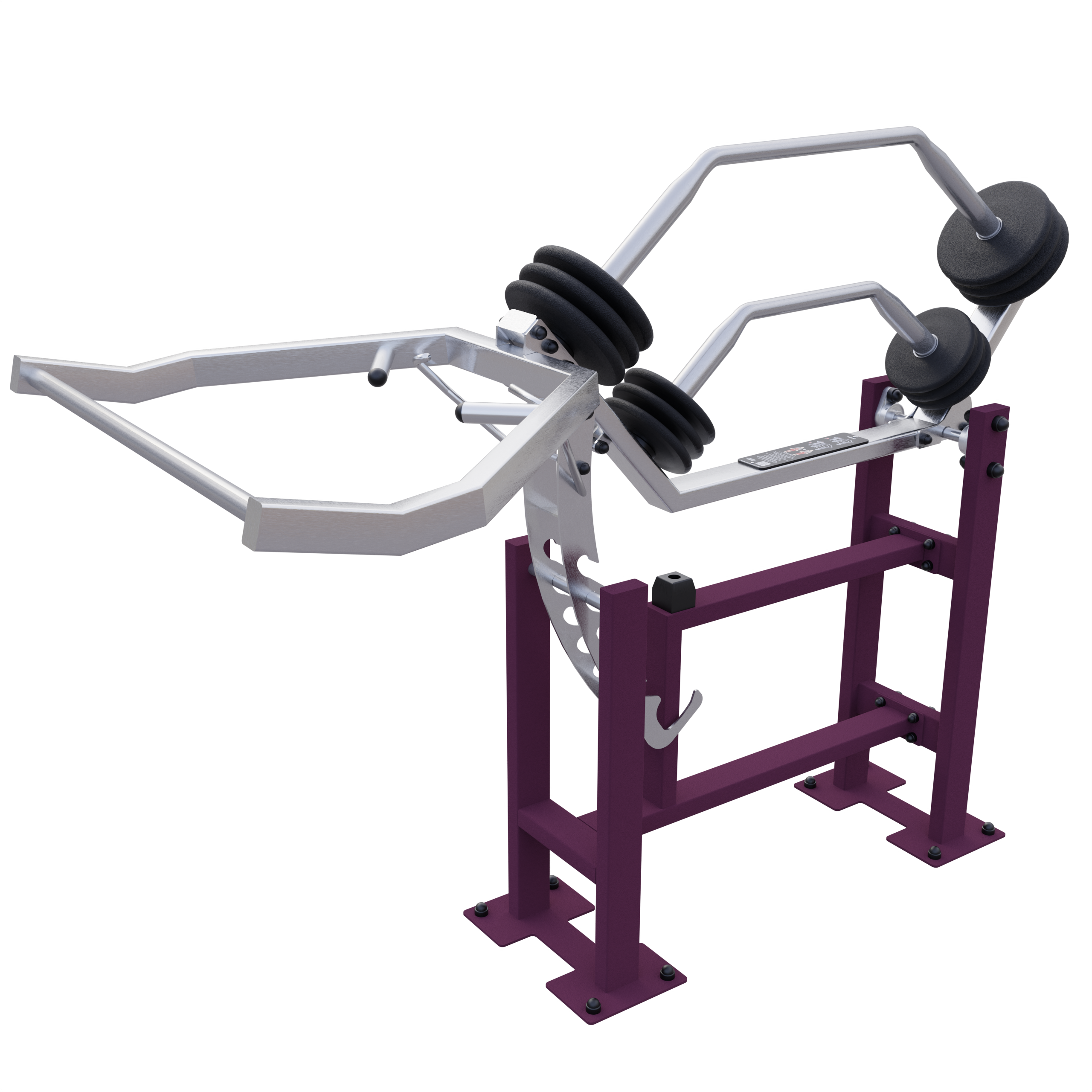

RAL 4007
PURPLE VIOLET

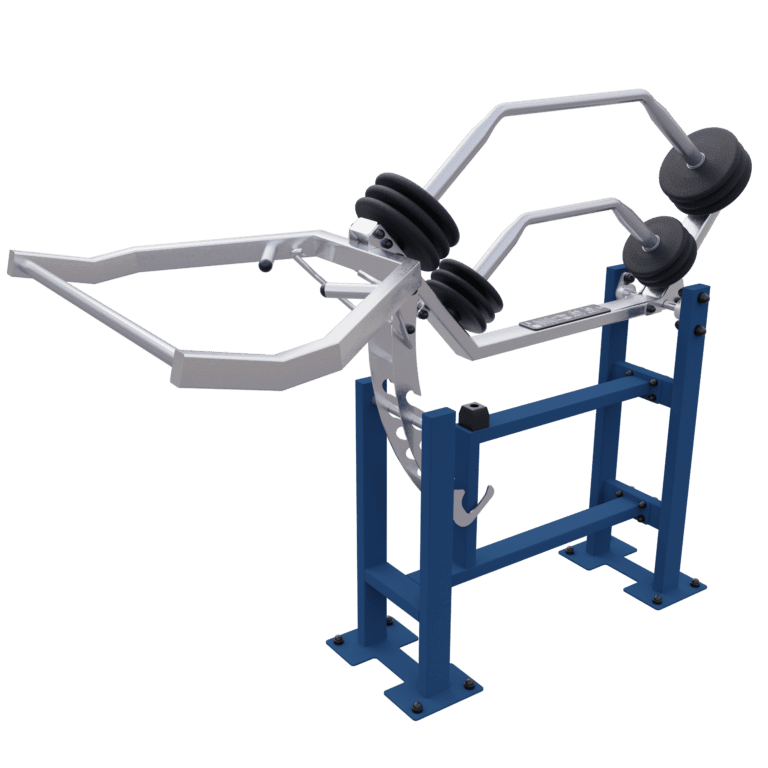

RAL 5003
SAPPHIRE BLUE

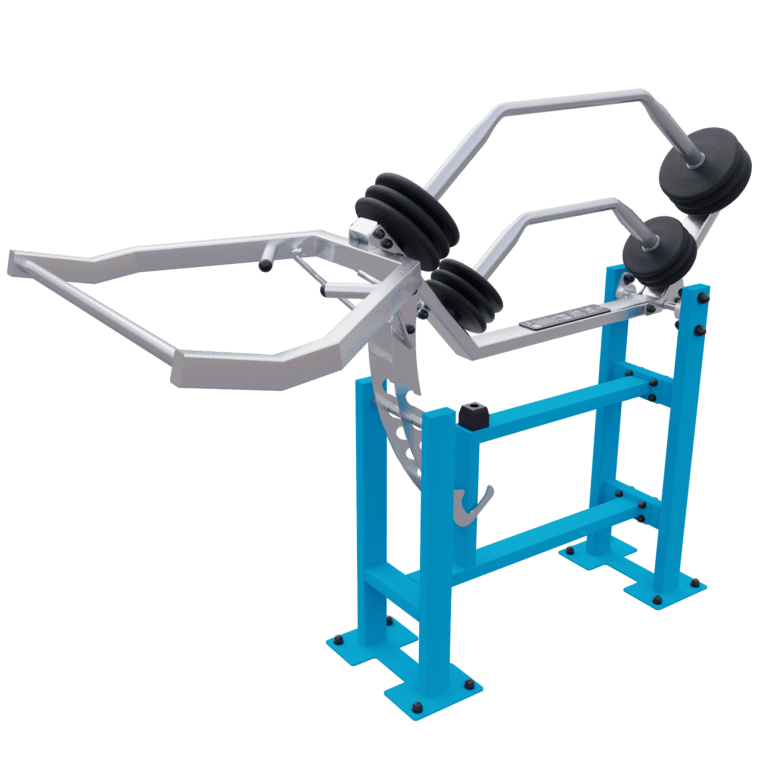

RAL 5012
LIGHT BLUE

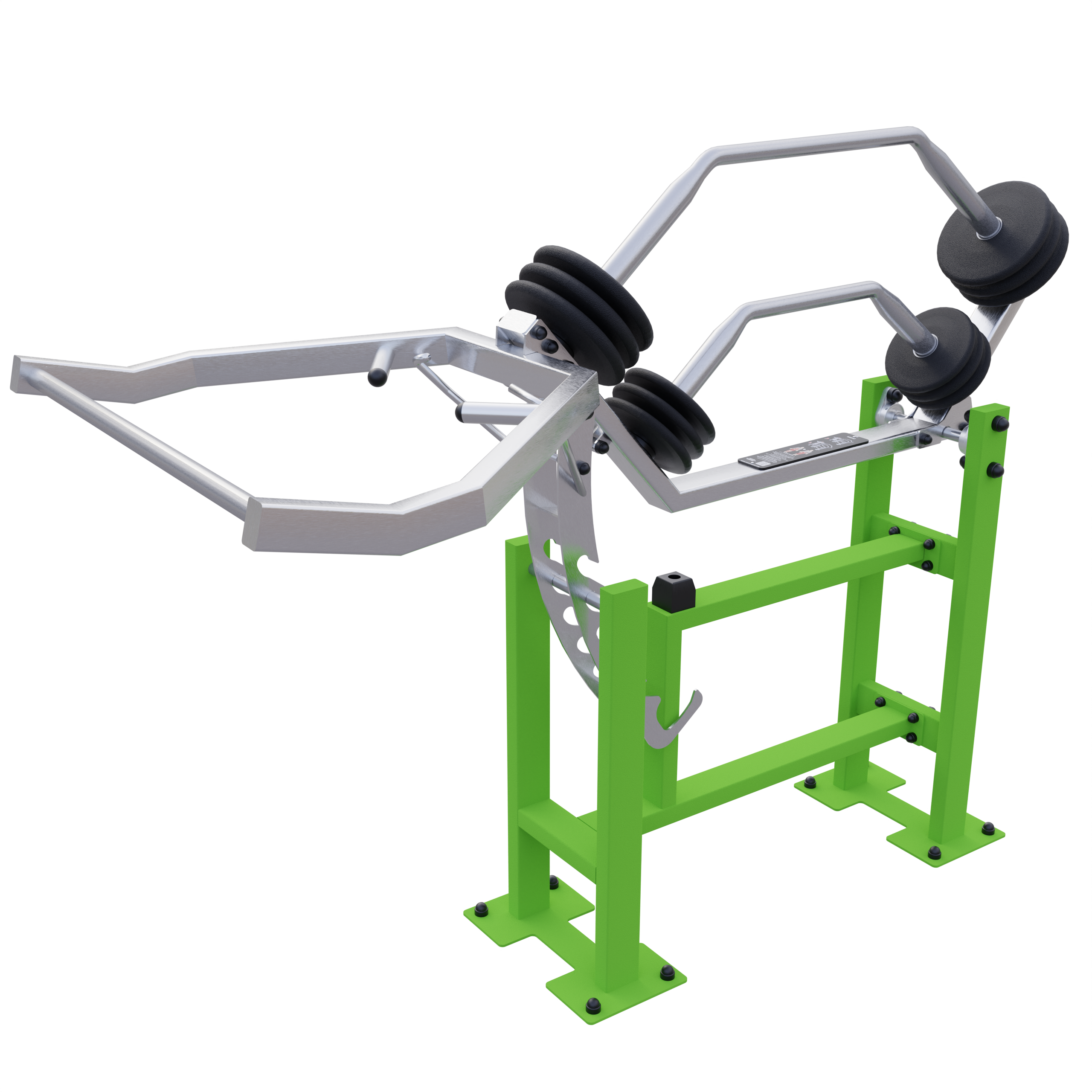

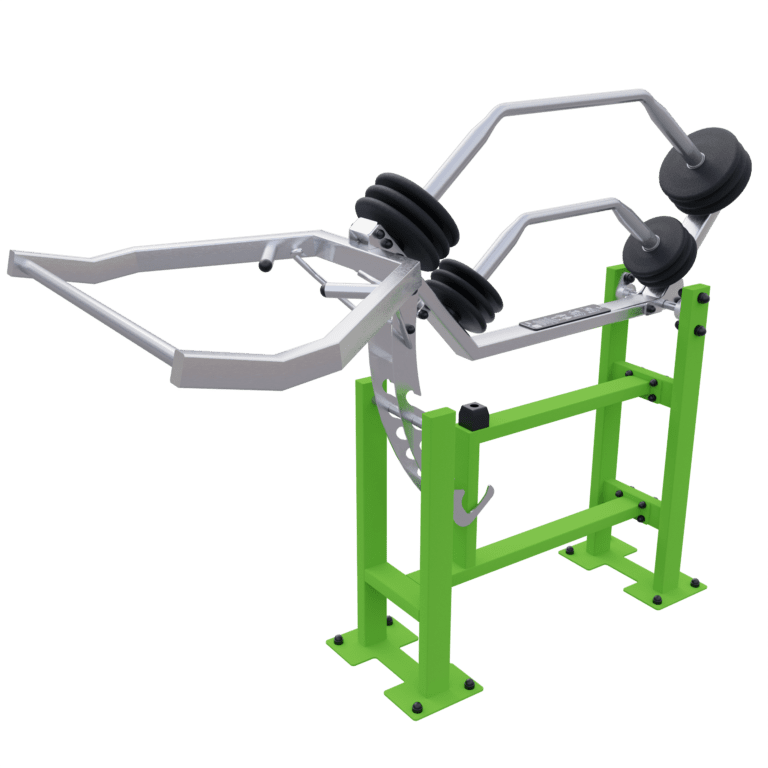

RAL 6018
YELLOW GREEN

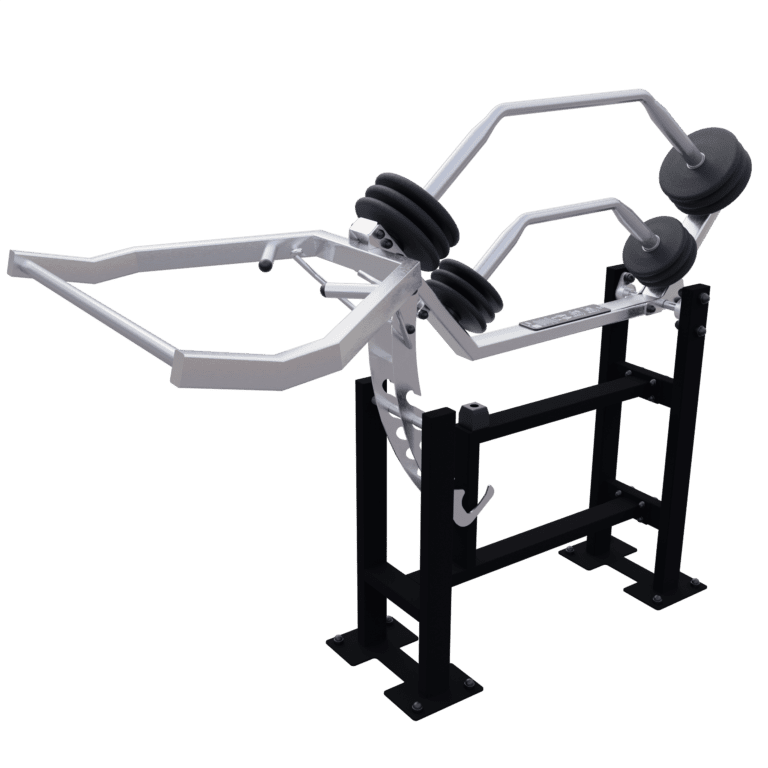

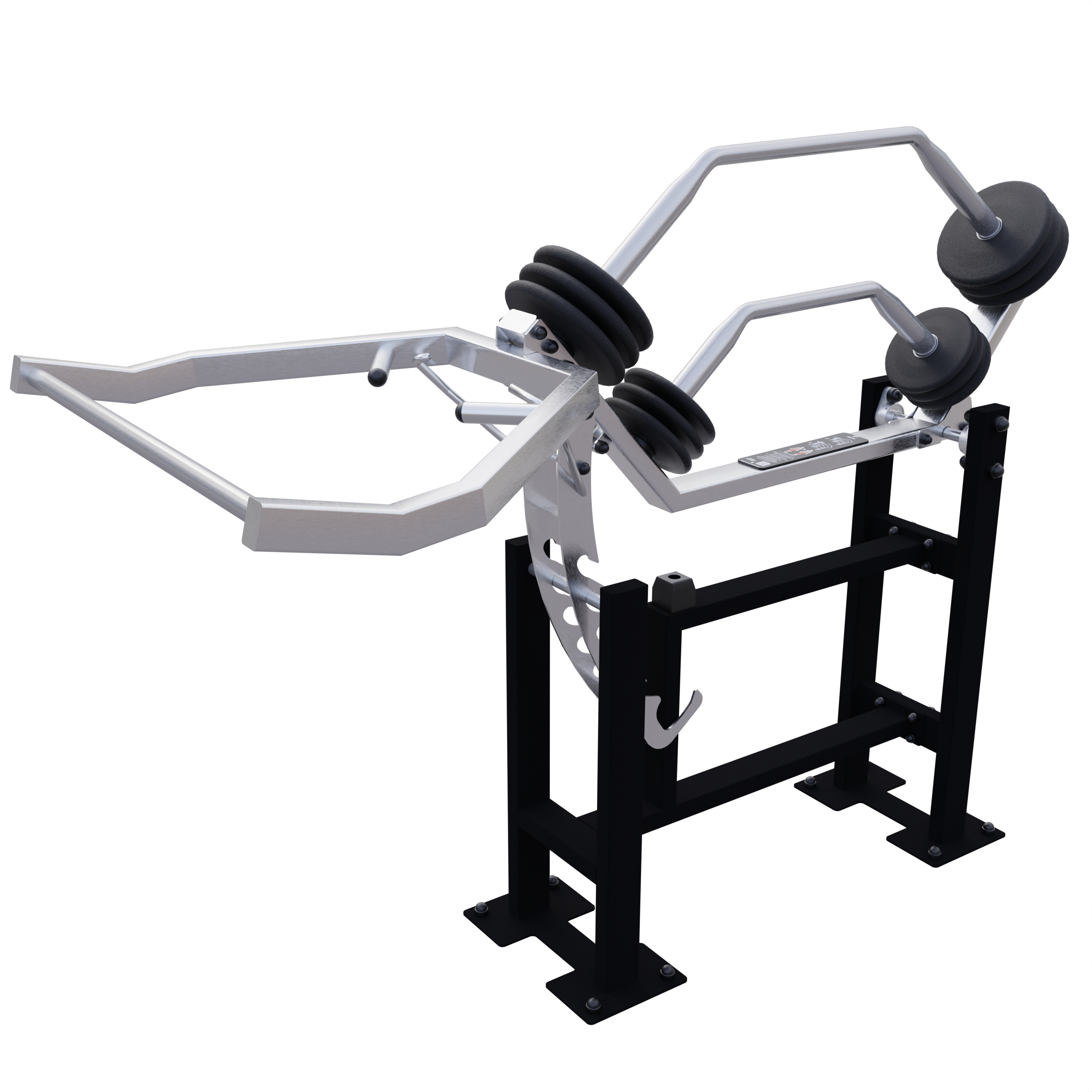

RAL 9005
JET BLACK

IVE devices in the basic version are made of polished stainless steel, thanks to which we obtain a beautiful and extremely durable structure. The lack of additional varnishing also allows the product to maintain a perfect appearance for as long as possible, because in this way we eliminate all possible mechanical damage to the varnish coatings that can always occur in public utility products.

However, at the customer’s request, we varnish our products in all available RAL CLASSIC colors and colors with the “HAMMER” structure.

In example below there is a QR Code link to the website www.ral-farben.de/en/all-ral-colours, which shows all available RAL colors.

OR

SPECIFICATION

Length

209 cm / 6’10’’

Width

98 cm / 3’2’’

Height

152 cm / 4’11’’

User height

+ 140 cm / 4’7’’

User age

+ 13 years

Safety area

23,6 m2 / 254,02 ft2

Material

Stainless Steel

Standard

EN 16630:2015-06E

Certificate

CE / EU Declaration of Conformity

Weight adjustment

5 kg - 125 kg (x 5 kg) / 10 lbs - 270 lbs (x 10 lbs)

ECOLOGY / ENVIRONMENT / SOCIAL RESPONSIBILITY

ECOLOGY

Users do not need electricity, air conditioning or heating for outdoor training. All that is needed is the motivation to do it.

MATERIALS

Our devices are made of 100% stainless steel, which allows us to completely eliminate other less durable materials.

WARRANTY

We are so confident about the quality of our devices that we have established a 10-year commercial warranty to guarantee their integrity. We didn’t only double the industry standards – we extended it over 5 times!

PRODUCT LIFE CYCLE

21 YEARS is the guaranteed product life cycle, during which time we will guarantee the availability of all spare parts for our devices.

MAINTENANCE

IVE devices are virtually maintenance-free. A 5-minute session every 6 months will be sufficient to keep your IVE device safe and operational.

PUBLIC PROCUREMENT

A device for squat training which develops quads, glutes, hips, calves, and back muscles.

  1. Made entirely of stainless steel.
  2. Load adjustment by moving the discs along pipes arranged perpendicularly and centrally in the axis of the exercising person.
  3. Adjustable load from 5 kg to 125 kg with a difference of 5 kg.
  4. Discs are protected against theft by the use of anti-theft screws, which require special tools to be removed.
  5. The movement of the device is based on the mechanism of two stainless steel bearings.
  6. Instruction plates made of 3 mm thick dibond, printed in UV technology, laminated with polyurethane.
  7. Possibility to set the starting position at 5 different heights.
  8. Dimensions: length 209 cm / width 98 cm / height 152 cm.
  9. Accuracy class: A – high accuracy.
  10. Class of use: S – for professional or commercial use.

Model 3d

Download file

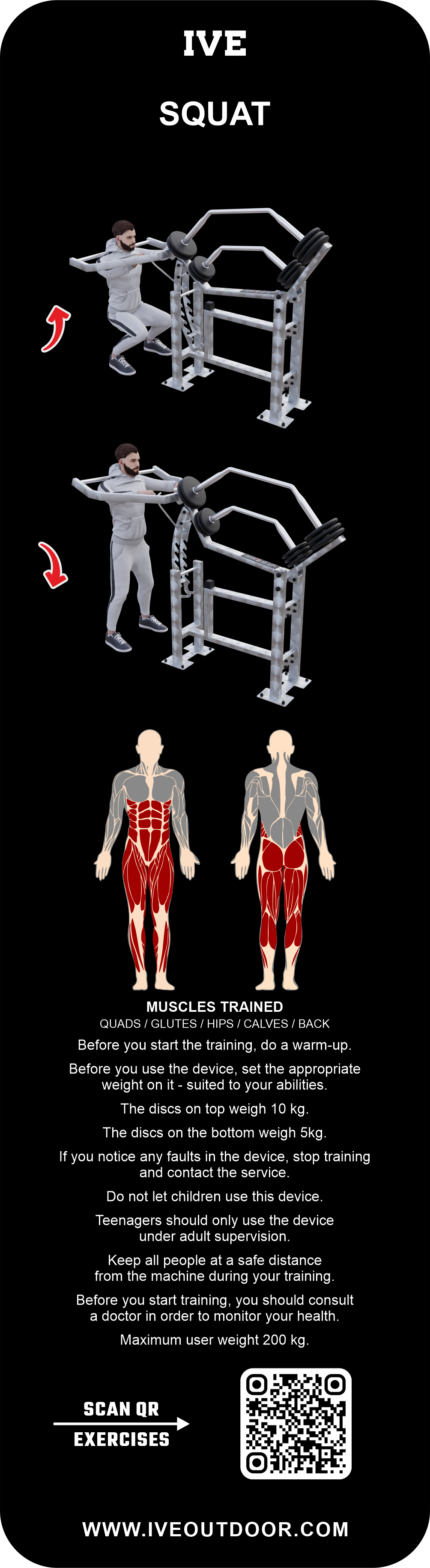

1. Instruction Plate
2. Device Feet
3. Safe Zone

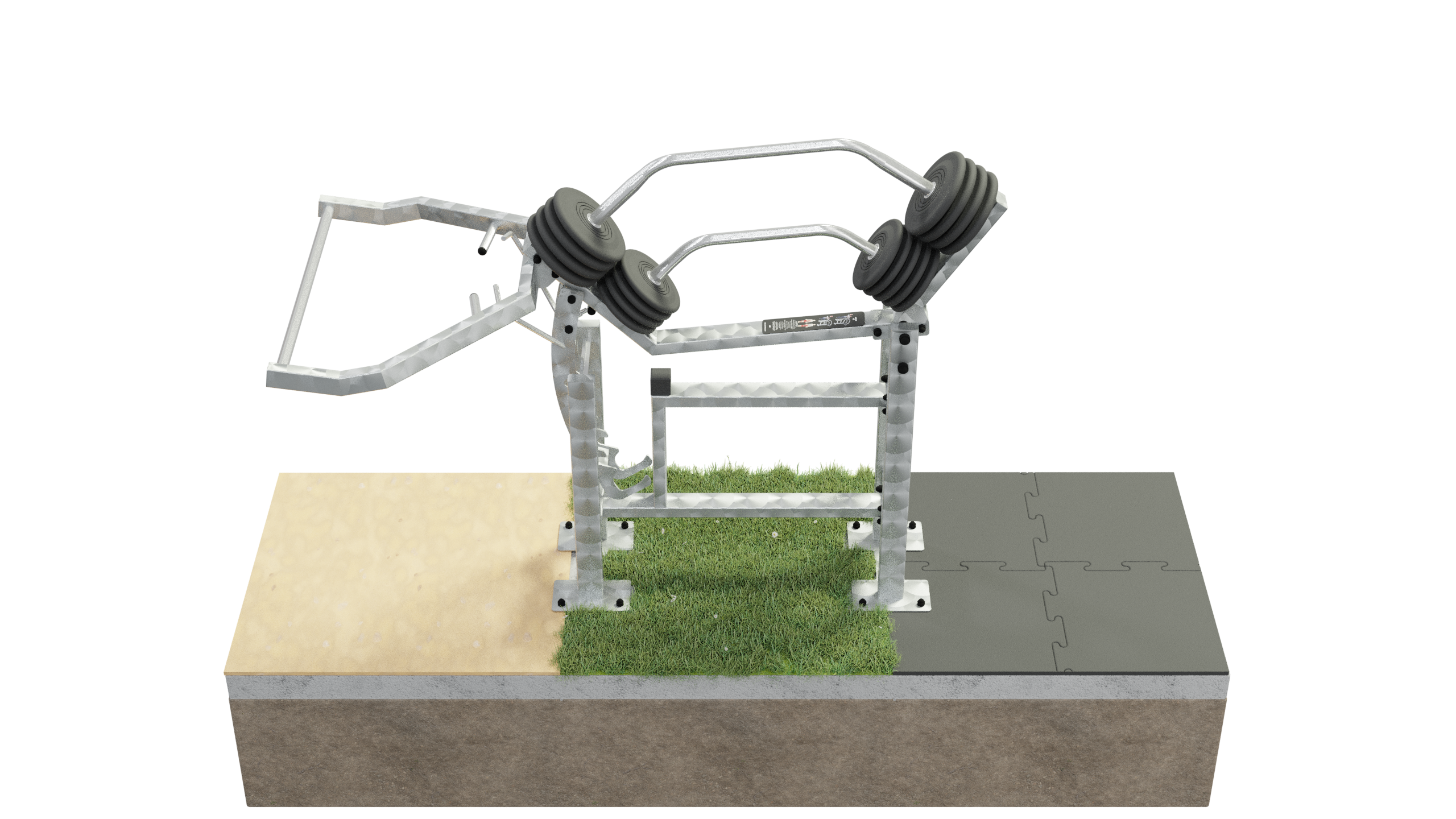

4. Foundation
